Professional Smart 4WD Mecanum Wheel Metal Robot Car Chassis Kit, Remote Control, DIY RC Robotic Moving Platform, for Arduino, Raspberry pi, Eduactional Science Kit, STEAM Model for Experiment, Code - Like New

Like New - Returned Item/Open Package

Introduction:

The mcnamu wheel used in this car has compact structure and flexible movement. It is a very successful omni-directional wheel. Four of these new wheels are combined, which can realize the omni-directional movement function more flexibly and conveniently. You can also use this robot chassis to achieve functions, which can be used for teaching research, robot competitions, etc.

Feature:

Mecanum Wheel, All direction moving;

Aluminum Plate went through sanding oxidation treatment, sturdy and artistic;

Compatible with most control conditions, suitable for mechanical DIY enthusiasts

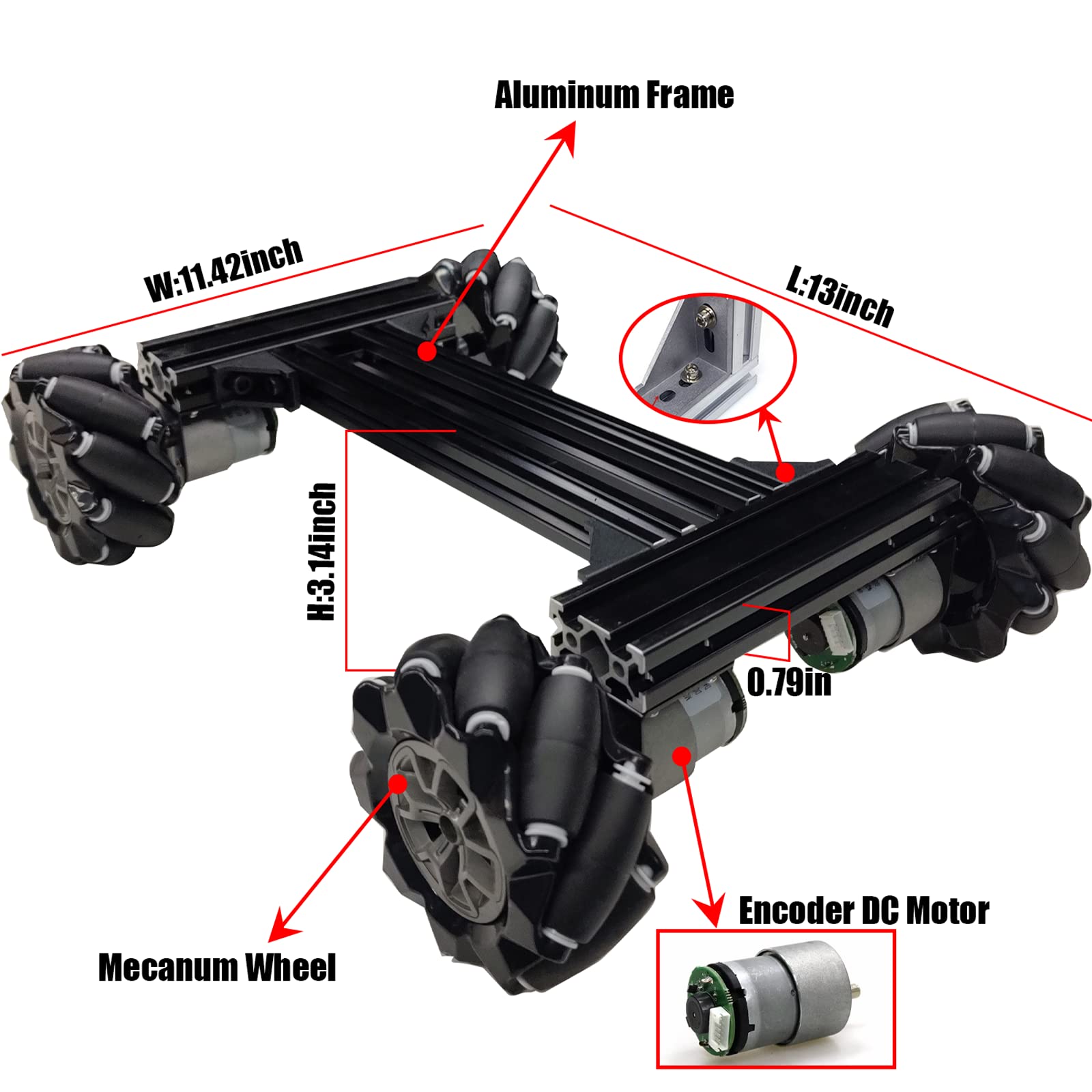

Car parameters:

Frame material: Aluminum

Size: 13*11.42*3.14inch

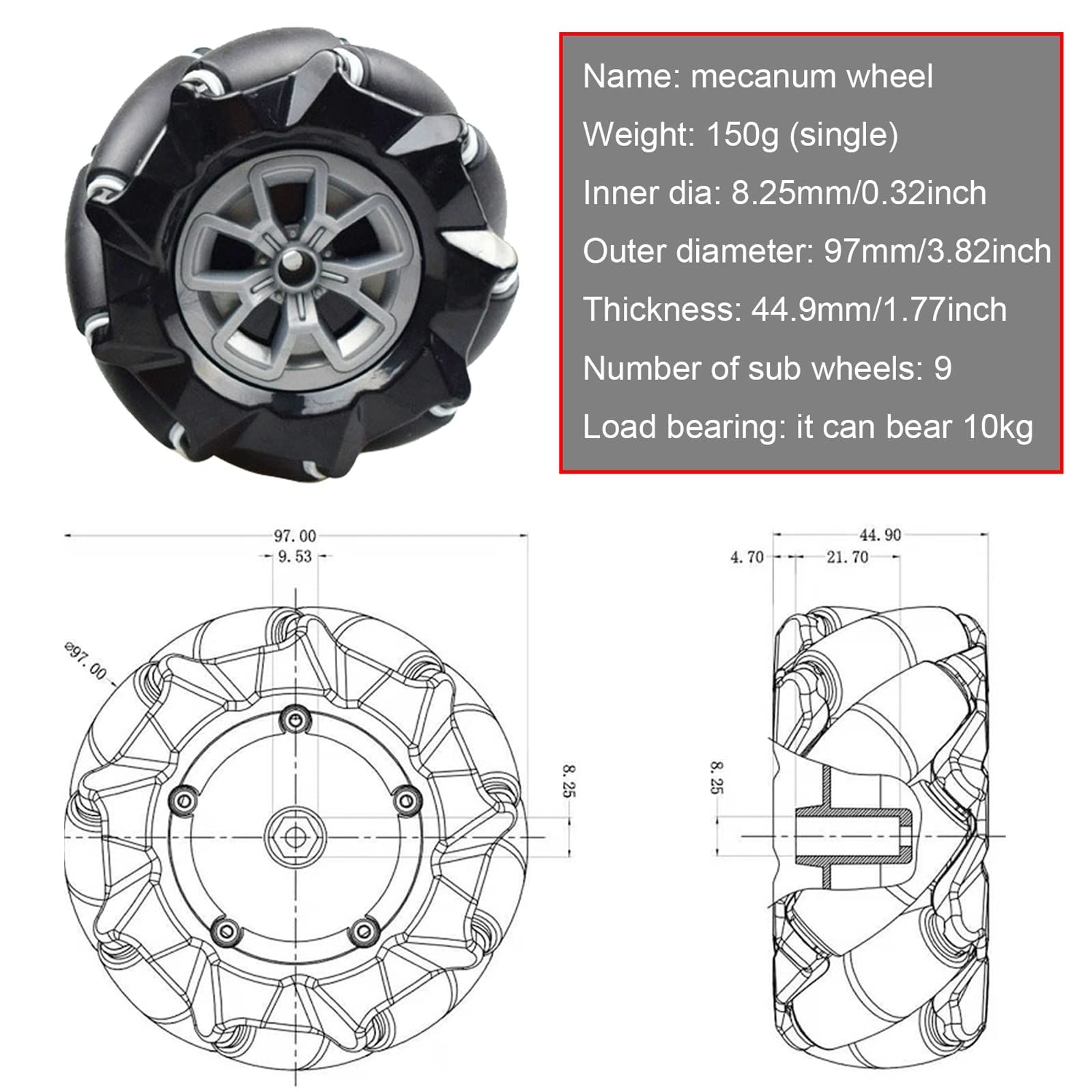

wheel parameters

Name: 97mm/3.82inch Mecanum Wheel

Materials: high quality plastic, rubber(roller)

Weight: 150 g (1pcs wheel)

Inner diameter: 0.32inch

Outer wheel diameter: 3.82inch

Thickness: 1.77inch (without couplings)

Number of sub-wheels: 9

Bearing capacity: can bear 0-10kg(4pcs wheel together)

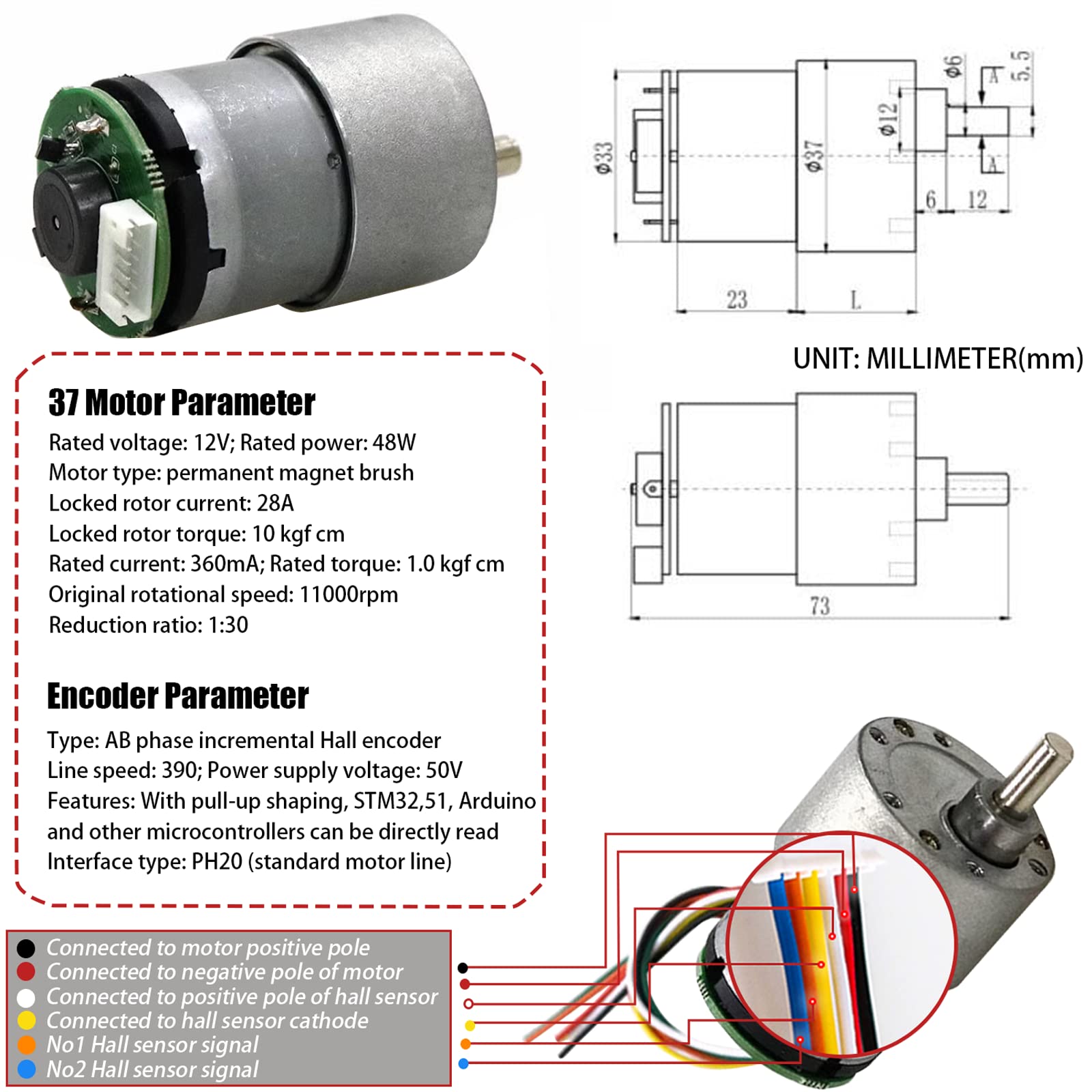

Motor parameters:

rate volate: 12v

rated power: 4.8w

type: brush dc motor

stall current: 2.8mA

stall torque: 10kgf.cm

rated current: 360mA

rated torque: 1kgf.cm

original speed: 110000rpm

reduced speed ratio: 1:30

encoder voltage: 3.5-5v

pluses: 6pcs/circle

original speed: 110000rpm

Shipping List:

Metal frame: 1set

97mm mecanum wheel: 4pcs

37 DC motor: 4pcs

Screw kit: 1set.

FEATURES

• WHAT YOU GET- After you get this mecanum wheels robot car chassis kit, you will get: metal frame *1set, mecanum wheels with diameter = 97mm *4pcs, 37 DC encoder motors*4pcs, motor brackets * 4pcs, and screws *1 set. For convenient shipping, the robot kit is sent by bulk delivery. You need to assemble it according to the attached simple manual. More details, please visit gitnova. It is not difficult to assemble, but need your patience.
• ROBOT FUNCTIONAL MODEL-Because of its superior automation and flexibility, AGV system has become an advanced and very popular way of goods carrying in warehouse. While our such smart 4wd mecanum wheel robot car chassis kit can simulate the AGV system, and can do many test experiments based this robotic platform. You can simply and clearly learn the latest robot technology based it, which made it became the superior learning tool for equipment enthusiasts or machine technology learners.
• STURDY & EXQUISITE - The body structure of this mecanum wheels robot car kit is made of high-quality aluminum plate and has been oxidized and sandblasted. It is not only exquisite in appearance, not easy to be scratched, but also solid and sturdy, can carry 0-5kg. The firm base design makes this robot chassis be able to run fast and stable. Therefore, this mecanum wheel chassis kit is very suitable for robot experiment and school eduactional science kits.
• ROBOTIC KNOWLEDGE-STEAM education is for student code programming and robotics learning. Based on this robot car kit, by the help of e.g., Arduino, Raspberry, Microbit and other MCUs, then you can learn how to code programming to realize the robot function, e.g., Move forward, backword, left turn, right turn, and other functions. And this moving platform model can be compatible with controllers like Arduino uno R3, Raspberry Pi and more, suit for most robotic educational science requirements.

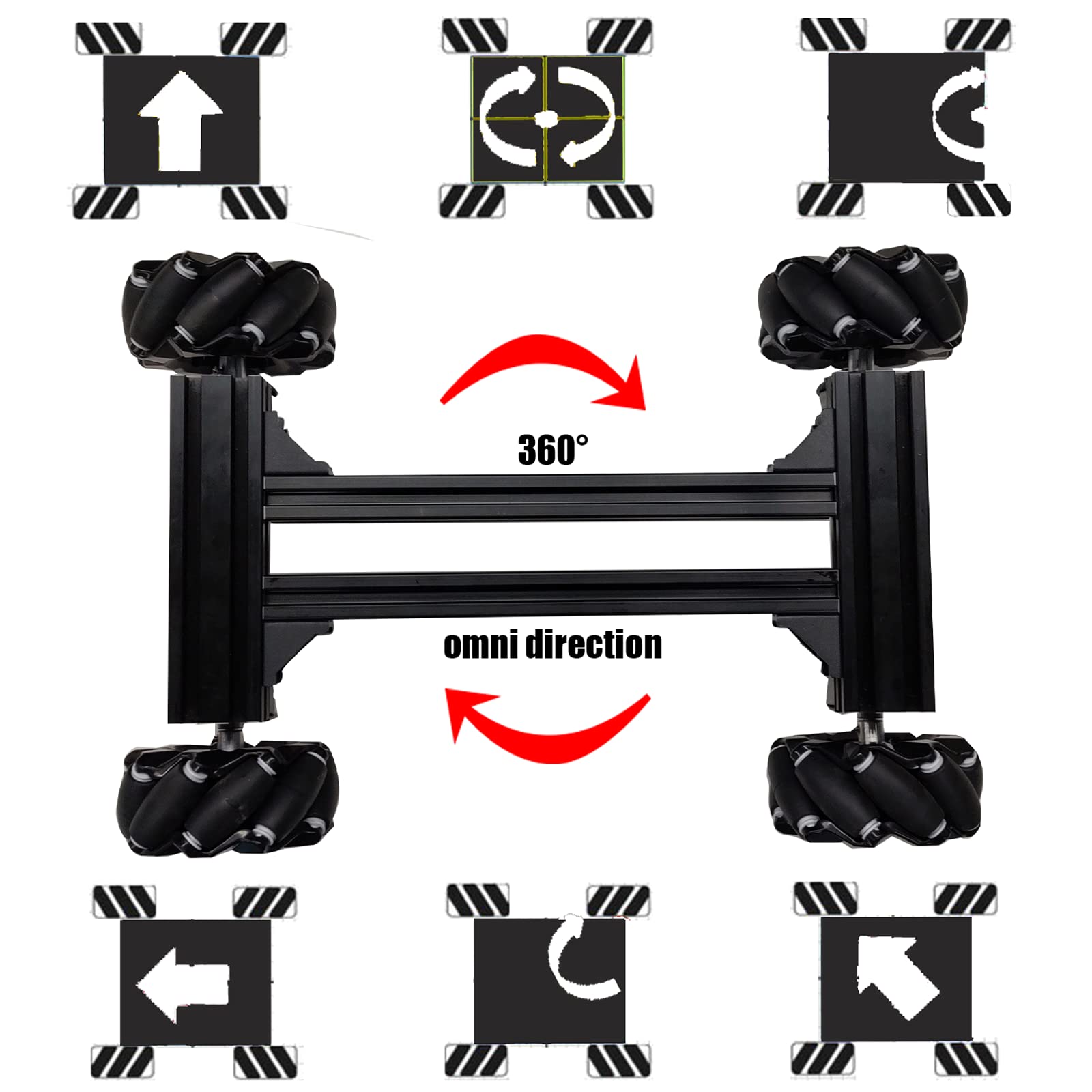

• OMNIDIRECTIONAL MOVEMENT-This robot car adopts mecanum wheels, which can realize the movement modes of backward moving, transverse moving, oblique moving, rotation and its combination, while reducing the lateral friction, and it can move smoothly even in narrow corners. With unique and advanced appearance, it is a popular choice for robot enthusiasts and is widely used in school educational science kits.
